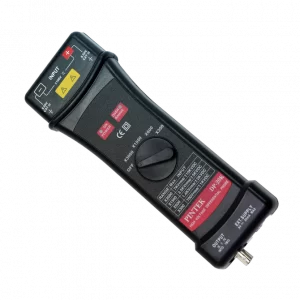

High Voltage Differential Probe DP-20K
- DC to 20 MHz bandwidth with fast rise times
- Handles up to 20,000 Vp-p (7000 Vrms/DC)
- Selectable attenuation: X300, X600, X1500, X3000
- High accuracy (±2%) and excellent CMRR
- Safe design compliant with CAT III and IEC 1010-1

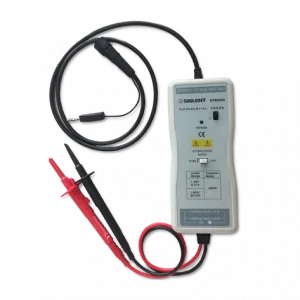

High Voltage Differential Probe DPB4080
- 50 MHz differential high-voltage probe for power and industrial electronics
- Measures up to 800 V (DC + Peak AC) with selectable 10X / 100X attenuation
- High input impedance and low capacitance for signal integrity
- Fast ≤7 ns rise time with excellent ±1% DC accuracy
- Compact, lightweight, and powered by a standard 9V DC adapter
High Voltage Differential Probe DPB5150
- 70 MHz differential high-voltage probe with ≤5 ns rise time
- Dual attenuation settings (50X / 500X) support up to 1500 V differential measurements
- High input impedance (10 MΩ) and low input capacitance (<2 pF) minimize signal distortion
- Excellent CMRR: >80 dB at DC, >50 dB at 1 MHz for accurate measurements in noisy environments
- USB-powered (5 V / 1 A), ideal for analyzing power electronics, inverters, and switching supplies

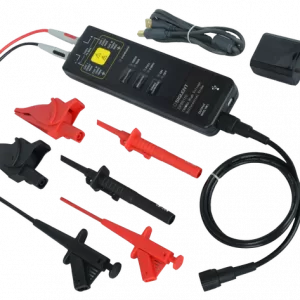

High Voltage Differential Probe DPB5700A
- 100 MHz bandwidth and ≤3.5 ns rise time for fast signal capture
- ±1300 V differential test voltage at 500X attenuation
- High CMRR performance: >80 dB at DC, >50 dB at 1 MHz
- USB-powered with offset setting and auto-save features
- Lightweight, compact design with overload alarm and LED indicator

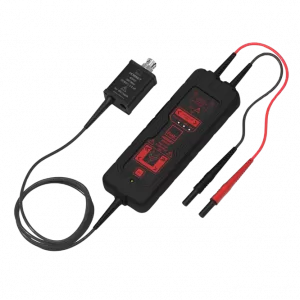

high voltage differential probe HORNET® ±4000V
- ±4000V differential and common mode input range for high-voltage applications
- Bandwidth exceeding 300MHz with rise times down to 1.0 ns
- Multiple attenuation ranges: 1000:1, 500:1, 200:1, 100:1
- Designed for integration into automated or manual test stations (not handheld)
- Compatible with oscilloscopes via universal BNC output, requires separate PMK power supply
High voltage optically isolated probe FireFly® SMA Input
- High Bandwidth – Offers a bandwidth greater than 1.5 GHz.
- Low Input Range – Designed for a low input voltage range of ±1V.
- High Input Impedance – Has an input impedance of 200 kΩ || 5.1 pF.
- Fast Rise Time – Features a rise time of less than 250 ps.
- High CMRR – Exhibits a high Common Mode Rejection Ratio (CMRR).

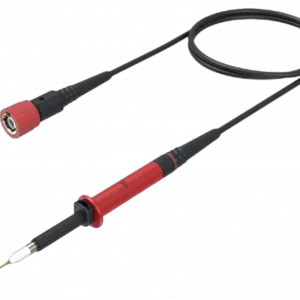

High Voltage Passive Probes PHV 1000-O
- It is a high-voltage probe designed for use with the OMICRON Lab Bode 100 vector network analyzer.
- It has a maximum input voltage of 2000V peak.
- It features a 100:1 attenuation ratio.
- The system has an input resistance of 50 MΩ and an input capacitance of 7.5 pF.
- It comes with accessories for easy adaptation to the device under test (DUT).
High Voltage Probe Calibration Generators KHT 6000C
- The KHT 6000C is a calibration generator specifically designed for HF adjustment of high voltage probes and dividers.
- It generates square pulses with a voltage range of 500V to 6000V, adjustable in 1V steps.
- The device features a steep rising edge with a rise time of less than 45ns (10% to 90%).
- Users can operate the KHT 6000C manually or remotely via a PC using the integrated USB or optional GPIB interface.
- Key specifications include a voltage display resolution of 1V and a maximum load of 100pF.

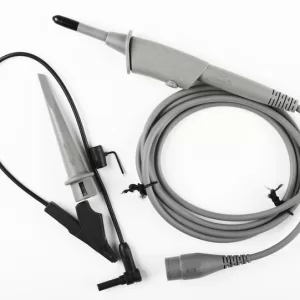

Oscilloscope Probe PB925
- Supports up to 2500 V DC + peak AC for high-voltage measurements
- Fixed 100:1 attenuation ratio for scaling large signals
- DC to 100 MHz bandwidth for accurate waveform capture
- 100 MΩ input resistance to minimize circuit loading
- CAT I insulation for high-voltage safety compliance
