Active Probe ATE2000 with ground blade
- For Automated Test Equipment (ATE) Designed for in-circuit measurements within automated test environments.
- High Bandwidth Offers a bandwidth of >2.5 GHz.
- Voltage Range Has an input dynamic voltage range of ±8V (16Vpp) and an input offset voltage range of ±12V.
- High Input Impedance Features a high input resistance of 1 MΩ (input to ground) to prevent shorting the test point.
- Ground Blade Includes a ground blade for repeatable measurements.
Active Probe Sonic® 4000
- The Sonic 4000 active probe offers best-in-class performance for in-circuit measurements.
- It has a bandwidth from DC to >4 GHz, high input impedance, low noise, and a ±8V dynamic range.
- The probe's ±12V input offset capability extends its input voltage range.
- It features an input capacitance of <0.6 pF and 2MΩ input resistance to minimize circuit loading.
- The probe tip reference connection has a high impedance to earth ground for safe in-circuit probing.

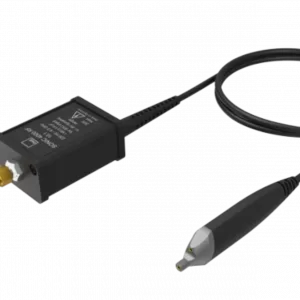

High Impedance Active Probe Sonic® 4000 RF
- High-Frequency Probe The Sonic 4000 RF active probe is designed for high-frequency in-circuit measurements, with a bandwidth of 220 Hz to >4 GHz.
- Input Impedance It features a high input impedance of 2MΩ in parallel with <0.6pF, minimizing circuit loading.
- Output The probe's output signal has no DC component.
- Safe Probing It has a high impedance probe tip reference connection (1MΩ to earth ground) for safe in-circuit browsing and to prevent short circuits.
- Applications It is ideal for use with spectrum, network, and RF analyzers, as well as other 50Ω measurement systems.

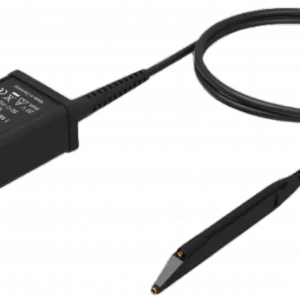

High Impedance Active Probe Tetris® 1000
-
1 GHz Bandwidth for accurate high-frequency signal measurements
-
±8 V Dynamic Range supports a wide range of signal levels
-
High Input Impedance of >1 MΩ with low 0.9 pF capacitance for minimal circuit loading
-
10:1 Attenuation Ratio ensures safe signal scaling for sensitive instruments
- Compact and Lightweight with 1.3 m cable and BNC output for universal oscilloscope compatibility

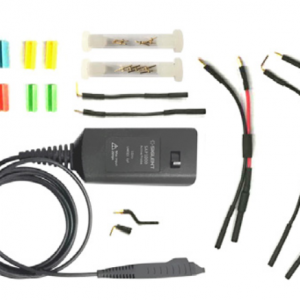

SAP1000 Single-ended Probe
- High-impedance active probe with >1 GHz bandwidth for precise signal measurements
- Low input capacitance of 1.2 pF minimizes circuit loading
- ±8 V dynamic range and ±12 V offset range for flexible signal analysis
- SAPBus interface enables auto-configuration and power via compatible oscilloscopes
- Optimized for use with Siglent SDS5000X series oscilloscopes
