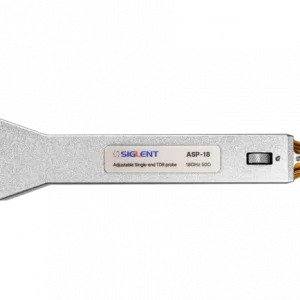

ASP-18 Adjustable Single-end TDR probe DC~18 GHz
- DC to 18 GHz frequency range for high-speed TDR and impedance testing
- Adjustable probe spacing from 0 to 6.5 mm with precision wheel
- 50 Ω impedance with low insertion loss and excellent repeatability
- SMA connector interface; optional customizable cable end (SMA/N-type)
- Ideal for PCBs, cables, and fine-pitch high-frequency measurements

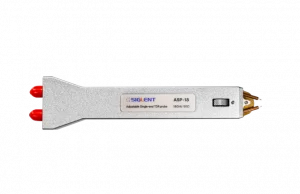

ASP-26 Adjustable Single-end TDR probe DC~26.5 GHz
- DC to 26.5 GHz bandwidth for high-speed TDR and impedance testing
- Adjustable probe spacing from 0 to 6.5 mm with precision control
- 50 Ω impedance with low signal loss and high measurement repeatability
- SMA connector interface; customizable cable end (SMA or N-type)
- Ideal for PCBs, cables, and high-frequency component testing

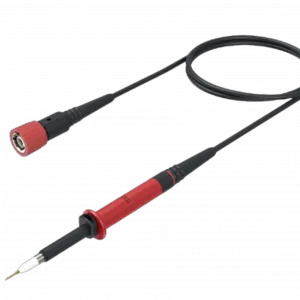

High Voltage Passive Probe PHV 1000
- It is a high voltage passive probe. This means it's designed to measure high voltages without needing its own power source, relying on the signal from the circuit it's testing.
- It has an attenuation ratio of 100:1. This indicates that the probe reduces the input voltage to 1/100th of its actual value, allowing standard oscilloscopes to measure high voltages safely. The attenuation ratio has an accuracy of ±2% at DC.
- It has a system bandwidth of 120 MHz. This specifies the frequency range over which the probe can accurately measure voltage signals. It also has a rise time of 2.4 ns.
- The input resistance is 50 MΩ. This high input resistance minimizes the loading effect on the circuit being measured, ensuring accurate readings. The input capacitance is 9.5 pF.
- It is designed for use with a measuring instrument having an input coupling of 1 MΩ AC/DC. This defines the input impedance that the measuring instrument (typically an oscilloscope) should have for the probe to function correctly.

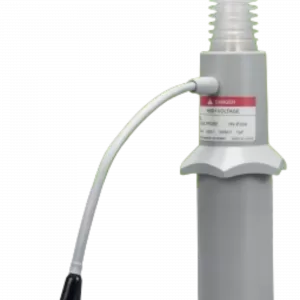

High Voltage Passive Probes HV-P30A
- It is a high voltage passive probe designed for high voltage measurements.
- It has an attenuation ratio of 1000:1.
- The maximum DC input voltage is 30 kV, and the maximum frequency band voltage is 40 kV.
- It has a system bandwidth of 50 MHz.
- It is intended for use in a protected test environment and is not designed for handheld use.

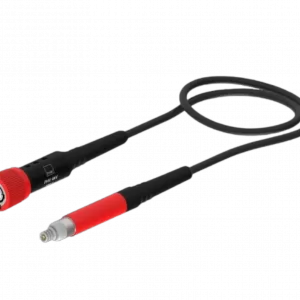

High Voltage Passive Probes PHVX4kV-2-0
- It's a passive high voltage probe designed for measurements in power electronics design.
- It has a maximum input voltage rating of 4000V DC / 4000V peak.
- It features a bandwidth greater than 600MHz and a 100:1 attenuation ratio.
- It comes with a 2.0m cable length.
- It does not include readout function or additional Silicon insulation.

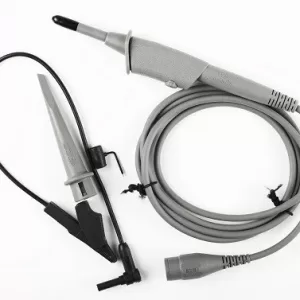

Oscilloscope Probe PB830
- 300 MHz bandwidth for high-frequency signal analysis.
- 10:1 attenuation ratio for accurate voltage measurements.
- 10 MΩ input resistance minimizes signal loading.
- CAT II 400V rating for safe use on low-voltage circuits.
- Replaceable spring hook tip for easy maintenance.

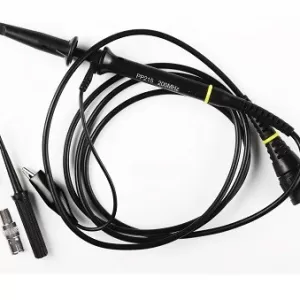

Oscilloscope Probe PP215
- Bandwidth up to 200 MHz in 10X mode for high-frequency signal analysis
- Switchable 1X/10X attenuation for versatile measurement applications
- Compatible with oscilloscopes with 1 MΩ input impedance
- Wide compensation range from 10 pF to 35 pF ensures calibration flexibility
- Rugged 130 cm cable and robust design for lab and field use

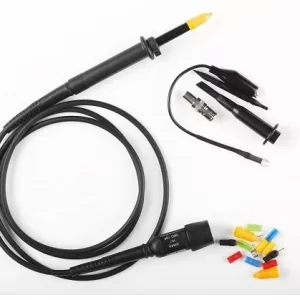

Oscilloscope Probe PP430
- High-performance passive oscilloscope probe with 1X/10X attenuation switch
- 300 MHz bandwidth in 10X mode for accurate high-speed signal capture
- Compatible with 1 MΩ input impedance oscilloscopes
- Wide compensation range of 10–35 pF for optimal calibration
- Durable 130 cm cable and robust design ideal for lab and field use

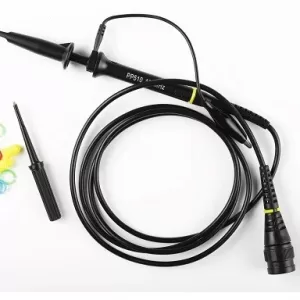

Oscilloscope Probe PP510
- Switchable 1X / 10X attenuation for versatile signal probing
- Higher bandwidth than entry-level models — suitable for mid-speed signals
- Compatible with oscilloscopes featuring 1 MΩ input impedance
- Adjustable compensation range for matching probe to oscilloscope
- Robust construction with standard 130 cm cable length
- CAT II rated input voltage for safe use on typical lab signals

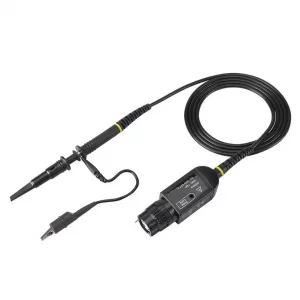

Oscilloscope Probes P6500
- 500 MHz bandwidth passive oscilloscope probe with 10X attenuation
- High input impedance of 10 MΩ and low input capacitance of 11 pF
- Supports up to 600 V input (DC + AC peak-to-peak) at 10X setting
- Compensation range from 9 pF to 25 pF for calibration flexibility
- Durable 122 cm cable with black injection-molded integrated housing

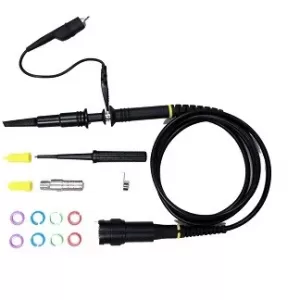

Oscilloscope Probes SP2035A
- 350 MHz bandwidth 10X passive oscilloscope probe for high-frequency applications
- Auto-Sense feature ensures automatic recognition by compatible oscilloscopes
- 10 MΩ input impedance and 12 pF capacitance for minimal circuit loading
- Rated for up to 300 V RMS with robust and durable construction
- Includes a 130 cm cable for flexible and convenient measurements

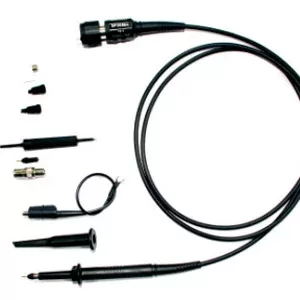

Oscilloscope Probes SP3050A
- 500 MHz bandwidth for accurate high-speed signal measurements
- 10X attenuation with 10 MΩ input impedance and 11 pF capacitance
- Rated for up to 400 V CAT II for safe voltage probing
- Compact and lightweight design, ideal for precision R&D work
- Compatible with oscilloscopes via standard BNC and 120 cm cable length
