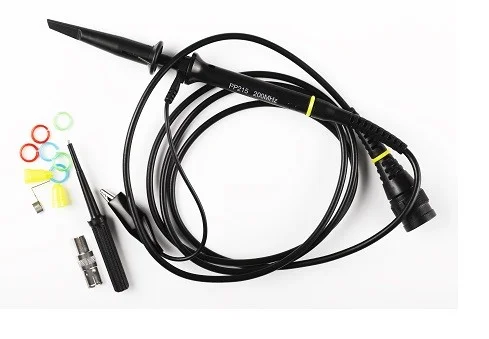

Oscilloscope Probe PP215

The Siglent PP215 is a versatile and high-bandwidth passive oscilloscope probe designed for use with oscilloscopes featuring a 1 MΩ input impedance. With a bandwidth of up to 200 MHz in 10X mode, the PP215 is ideal for a wide range of electronic test and measurement applications.

This probe offers a switchable 1X/10X attenuation ratio, allowing users to adapt to different signal levels while maintaining signal integrity. It features a wide compensation range and robust build quality, making it a reliable tool for engineers, technicians, and educators.

PP215 Specifications

• • Attenuation Ratio: 1X / 10X
  • Bandwidth:
    • 10X: DC to 200 MHz

• Input Impedance:
  • 1X: 1 MΩ
  • 10X: 10 MΩ
• Input Capacitance:
  • 1X: 85-120 pF
  • 10X: 18.5-22.5 pF
• Compensation Range: 10 pF to 35 pF
• Maximum Input Voltage:
  • 1X: 150 V RMS (CAT II)
  • 10X: 300 V RMS (CAT II)
• Operating Temperature: -10°C to +55°C
• Cable Length: 130 cm
• Weight: 55 g
