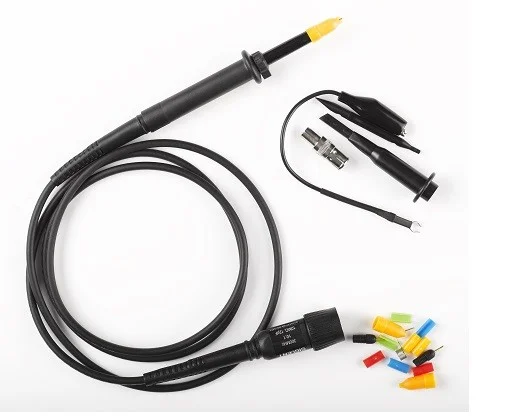

Oscilloscope Probe PP430

The Siglent PP430 is a high-performance passive oscilloscope probe engineered for demanding measurement tasks requiring wide bandwidth and signal fidelity. With a 300 MHz bandwidth in 10X mode, it is well-suited for high-speed signal analysis and general-purpose testing.

Designed for use with oscilloscopes featuring a 1 MΩ input impedance, the PP430 also includes a switchable 1X/10X attenuation setting, providing measurement flexibility across a range of voltage levels. Its wide compensation range, durable construction, and standard 130 cm cable make it a dependable tool for lab and field use.

PP430 Specifications

• Attenuation Ratio: 1X / 10X
• Bandwidth:
  • 10X: DC to 300 MHz
• Input Impedance:
  • 1X: 1 MΩ
  • 10X: 10 MΩ
• Input Capacitance:
  • 1X: 85-120 pF
  • 10X: 18.5-22.5 pF
• Compensation Range: 10 pF to 35 pF
• Maximum Input Voltage:
  • 1X: 150 V RMS (CAT II)
  • 10X: 300 V RMS (CAT II)
• Operating Temperature: -10°C to +55°C
• Cable Length: 130 cm
• Weight: 55 g
