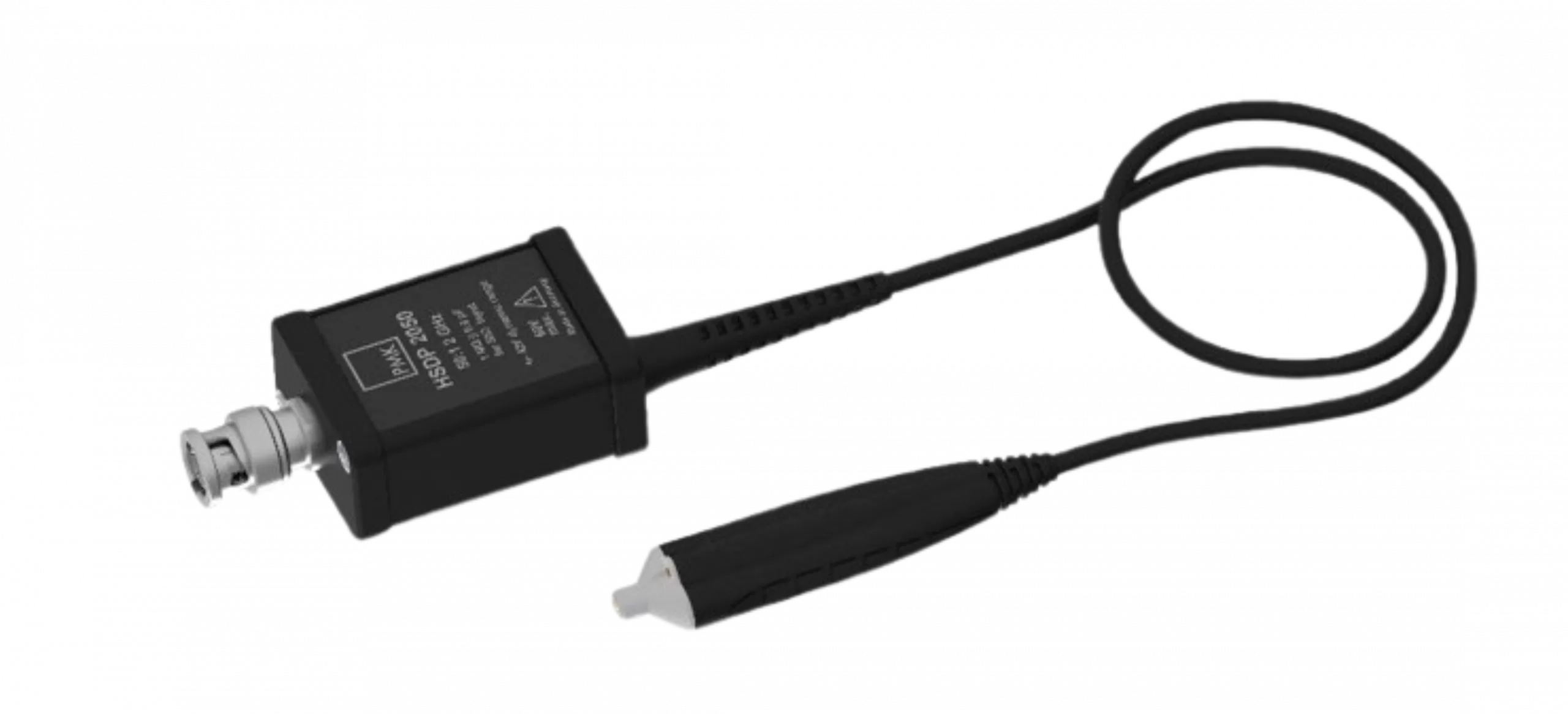

High-Speed Differential Probe HSDP4010

The HSDP Series offers best-in-class performance with >2 GHz models supporting up to ±42V differential input range, and ±8V models offering bandwidths up to >4 GHz. The high input impedance, low noise, and ±60V common mode voltage range make the different models ideal for a wide range of in-circuit measurements for design, validation, and debugging of analog signals, such as those found in switched-mode power supplies.These differential probes are also well-suited for characterizing high-speed serial bus designs, supporting widely used interfaces like USB 2.0, Ethernet (GbE), CAN/LIN, I²C, SPI, SATA, FireWire (1394b), FlexRay, and HDMI.The HSDP Series features 2.54mm (0.1”) socketed inputs, enabling easy interfacing with a variety of industry-standard connectivity options. The compact probe head design, together with a broad accessory range, makes these probes ideal for probing even the smallest IC devices.

Technical Highlights

• • Bandwidths:
    • 2 GHz with ±42V input
    • 4 GHz with ±8V input
  • Differential Input Impedance: 1 MΩ || <0.6 pF
  • Single-ended Input Impedance: 500 kΩ || 1.2 pF
  • ±12V Input Offset: Extends the probe’s dynamic range
  • Common Mode Voltage Range: ±60 V
  • DC Offset Control: Software-controlled via PMK power supplies
  • Cable Length Options: Available in 1.3 m, 2 m, and 7.5 m lengths
  • Oscilloscope Compatibility:
    • 50 Ω input
    • 1 MΩ input with 50 Ω feed-through termination

Connectivity and Power Options

• • • • Universal BNC output for broad compatibility with lab equipment
      • Remote control capability via PMK PS2/PS3 power supplies (USB or LAN interfaces)
      • Portable battery-powered operation with the AP-01 (1-channel, >8 hours runtime, no remote control)

Whether used for RF validation, signal integrity analysis, or debugging embedded systems, the HSDP Series offers the precision, flexibility, and signal fidelity that engineers and developers need in today’s complex electronic design environments.

HSDP4010 – Flagship Model

The HSDP4010 is the flagship model of the HSDP series, engineered for ultra-high-speed measurements with exceptional signal fidelity.

HSDP4010 Key Specifications

• • • • Bandwidth: >4 GHz (typ. 4.2 GHz)
      • Attenuation Ratio: 10:1
      • Differential Input Range: ±8 V (16 Vpp)
      • DC Offset Range: ±12 V
      • Common Mode Range: ±60 V
      • Input-Referred Noise:
        • <2 mV rms
        • 100 nV/√Hz (preliminary)
      • Rise Time (10–90%): <140 ps (preliminary)
      • Propagation Delay: 6.7 ns
      • Common Mode Rejection Ratio (CMRR):
        • 70 dB @ DC
        • 50 dB @ 1 MHz
        • 45 dB @ 10 MHz
        • 35 dB @ 100 MHz
        • 25 dB @ 500 MHz and 1 GHz

The HSDP4010 is ideal for:

• • • • • • High-speed serial interface testing
          • Low-noise analog signal capture
          • Timing-critical circuit evaluation
          • Advanced RF, digital, and mixed-signal debugging

With unmatched bandwidth, low noise, and high CMRR, the HSDP4010 delivers superior performance for demanding engineering tasks in lab and field environments alike.
