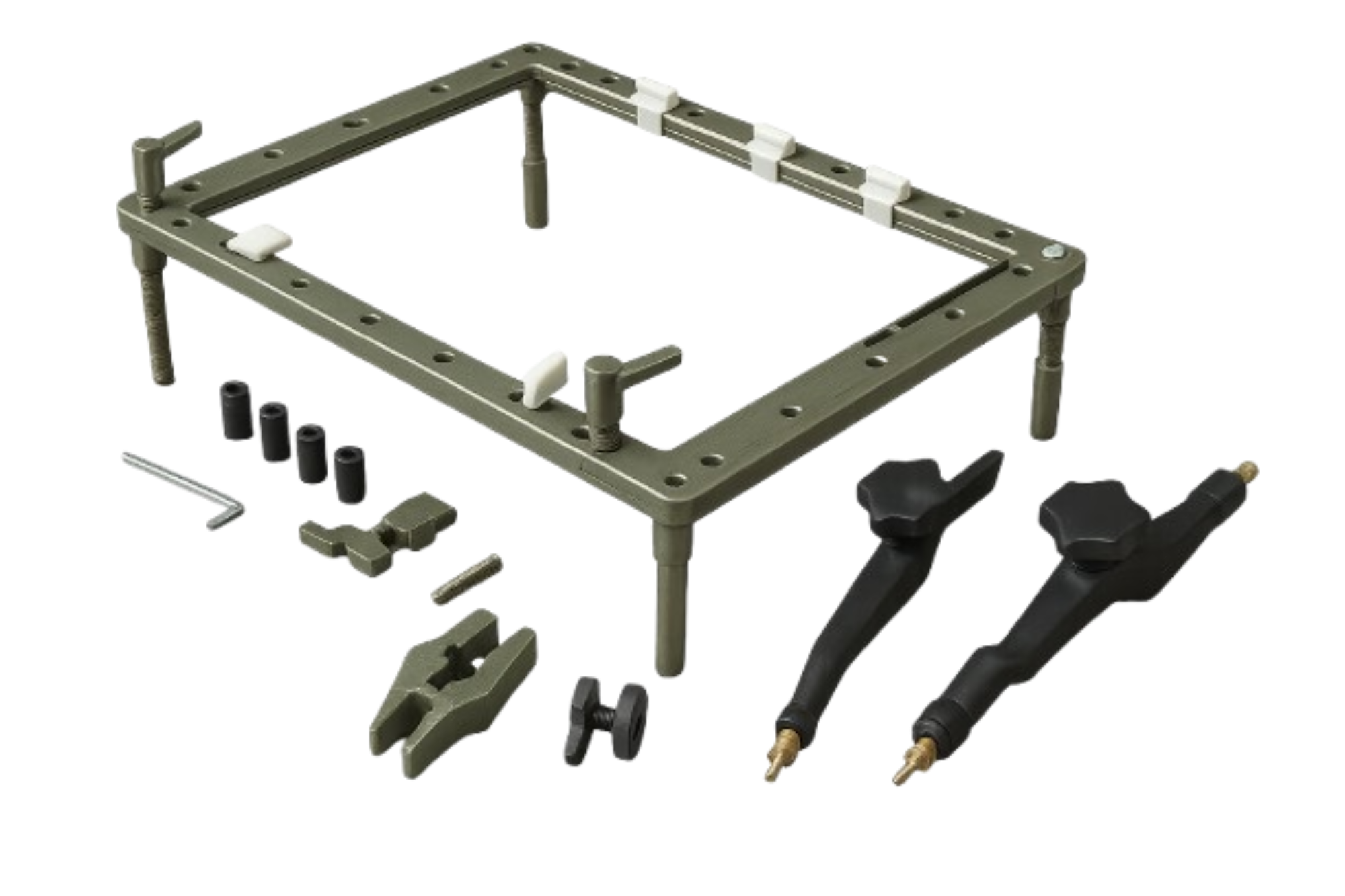

6U Board Tester SKID-M Starter Kit (240×160 mm)

The SKID-M Starter Kit is a comprehensive platform designed for hands-free testing and debugging of 6U standard PCBA.

The kit is designed for boards with a clamping width of at least 240×160 mm.

The system's modular design allows users to expand it to suit their specific needs. The PCBA spacers can clamp most geometrical forms, including inconvenient non-standard shapes.

The board resides 10mm above the frame for better accessibility to the DUT, and the system stands on 90mm pedestals, enabling simultaneous access from both the top and bottom sides.

The frame has standard M6 threads all around, which enables the mounting of various accessories such as probe positioners, lamps, and cameras.

The SKID-M Starter Kit has an operating temperature range of 0 °C to +50 °C, with non-condensing humidity required.
